Tube contact sensor with pipe clamp and passive output
Description

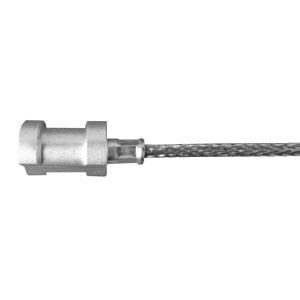

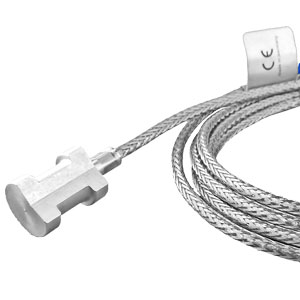

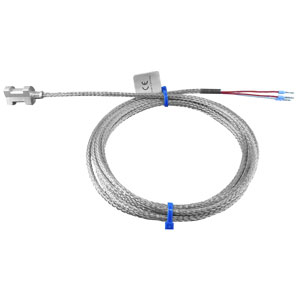

Contact temperature sensors with clamping band and axial sensor block are used for temperature detection on pipes (f. e. cold and hot water) or heating pipes. With the supplied pipe clamp, the contact block is attached directly to the pipe.
Technical Data
| Measuring ranges: | -35...+135°C PVC |
|---|---|
| Sensors: | see table below (optional with two sensors) |
| Connection type: | 2-wire connection (optional 3- or 4-wire connection) |
| Testing current: | approx. 1mA |
| Process connection: | Pipe clamp |
| Strap dimensions: | d=13-92mm (1/4 - 3"), 300mm |
| Connection cable: | 2m (optional other lengths) |
| Insulating resistance: | >/= 100MOhm, by 20°C (500VDC) |
| Protection type: | IP65 according EN 60529 |
| Protection class: | III according EN 60730 |
| Accessories: | Heat transfer paste |
