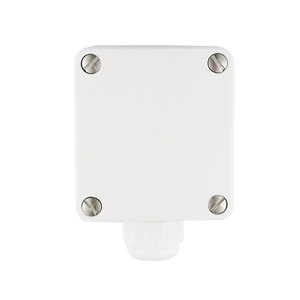

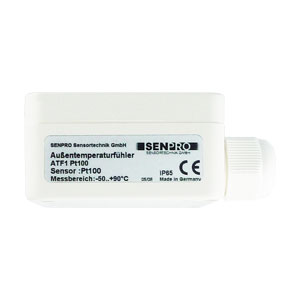

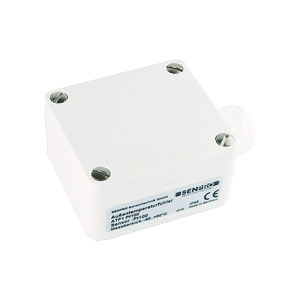

Outdoor- / Humidity room temperature sensor with passiv output
Description
Outdoor temperature sensors are used for temperature detection of outdoor
temperature, temperature of humidity rooms, e.g. They are suitable for assembly at external walls, in cold stores, in halls, in the industrial field and agriculture.
Technical Data
| Measuring ranges: | -50...+90°C (Tmax NTC=150°C, Tmax LM235Z=125°C) |
|---|---|
| Sensors: | see table below (optional with two sensors) |
| Connection type: | 2-wire connection (optional 3- or 4-wire connection) |
| Testing current: | approx. 1mA |
| Process connection: | by means of screws |
| Housing: | Box shaped, synthetic, white colour, 64x58x36 mm |
| Fitting: | M16 x 1,5 |
| Insulating resistance: | >/= 100MOhm, by 20°C (500 VDC) |
| Protection type: | IP65 according EN 60529 |
| Protection class: | III according EN 60730 |
| Accessories: | Sun protection / SS-01 (Impact resistant) |
