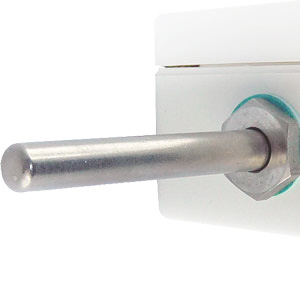

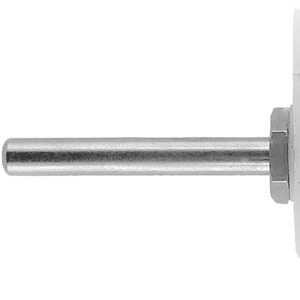

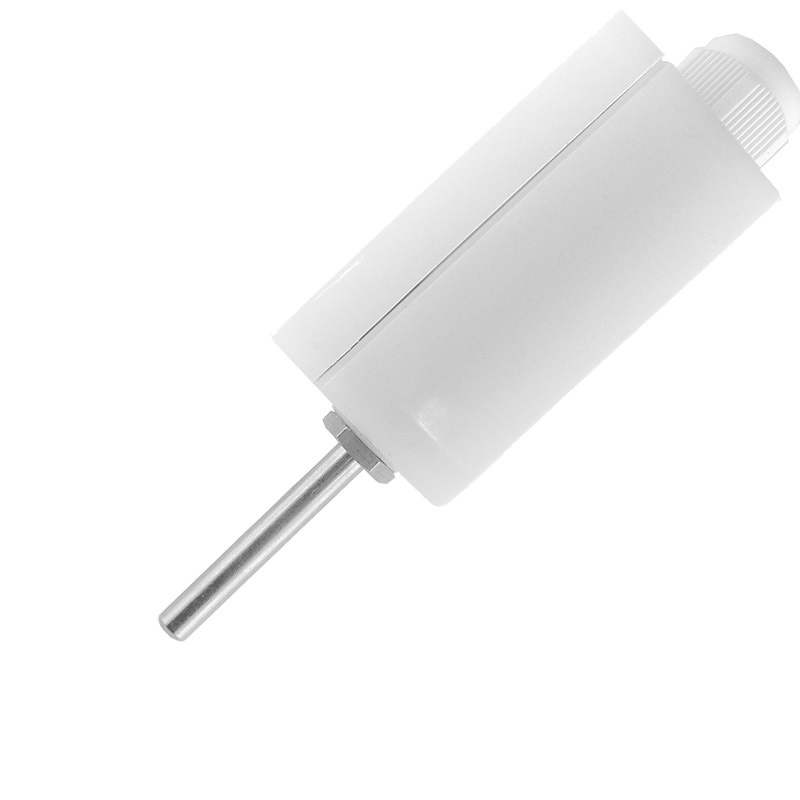

Outdoor temperature transmitter with switchable measuring ranges
Desciption
Outdoor temperature transmitters in a robust plastic housing are used for temperature detection in outdoor areas and humidity rooms. The measured value is converted into a linear output signal 0-10 V or 4-20 mA. They are suitable for installation on external walls (protected areas without direct sunlight), in cooling and greenhouses, in industrial areas and in agriculture. The measuring ranges are switched by DIP Switches.
Technical Data
| Measuring ranges: | -50...+50°C, -20...+80°C, 0...+50°C, 0...+100°C, 0...+160°C, -50...+160°C selectable with dip switch (other measuring ranges optional) |
|---|---|
| Power supply: | 24 VAC ± 10% (for voltage output) |
| Ambient temperature: | -30...+70°C |
| Sensor: | Pt100 |
| Accuracy class: | Class B, DIN EN 60751 |
| Connection type: | 2-/ 3-wire connection |
| Process connection: | by means of screws |
| Housing: | Box shaped, synthetic, white colour, 64x58x36 mm |
| Insulating resistance: | >/= 100MOhm, by 20°C (500V DC) |
| Protection type: | IP65 according EN 60529 |
| Protection class: | III according EN 60730 |
| Accessories: | Sun protection / SS-01 (Impact resistant) |
