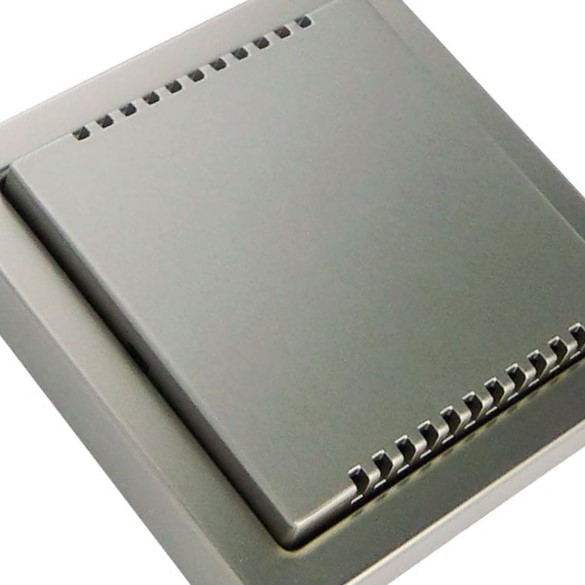

Flush-mounted room temperature sensor with passive output / transmitter, flush-mounted
Application
Flush-mounted room temperature sensor for measuring the air temperature (in non-condensing air) as a setpoint adjuster, for presence detection or as a control panel with optional buttons, switches, potentiometers, LEDs in living, working, office and business rooms as well as in industrial areas. The flush-mounted versions are installed in well-known flat switch programs, e.g. B. Busch-Jaeger, Berker, Gira, Legrand, Merten, Jung. The flush-mounted sensors can be installed individually or in combination with light switches, sockets or other flush-mounted devices.
Technical Data
| Measuring range: | -30...+60°C |
|---|---|
| Sensors: | see table below, assembled on board |
| Circuit type: | 2- wire connection (3-/4- wire connection optional) |
| Potentiometer: | Standard 1kOhm, optionally also other values on request (e.g. 100Ohm, 5kOhm, 10kOhm or potentiometer 0-10V linearized) |
| Rotary switch: | Max. 4 switching levels (0, I, II, III), 24V, max. 130mA |
| LED: | Standard: green, optional: red, yellow or two-tone (24V DC) |
| Button: | Normally open, 24V, max. 35mA |
| Housing: | Plastic, white (RAL 9010), color variants depend on the light switch programs |
| Assembly: | on flush-type box, 55mm |
| Connection: | by means of screw terminals 0.14...1.5mm² |
| Output: | Ohm value or 0 - 10V |
| Transmitter: | 0...+50°C |
| permissible humidity: | max. 90% relative humidity uncondensed air |
| Protection type: | IP20 (EN 60529) |
| Protection class: | III (EN 60730) |
