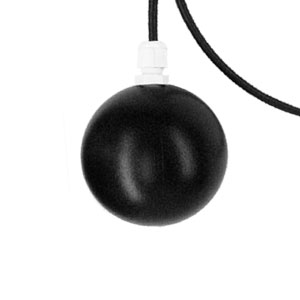

Pendulum temperature sensor with passive output
Application
Room pendulum temperature sensor especially for temperature detection in larger rooms, halls or warehouses. The measurement method and the corresponding positioning of the sensor in the room guarantee a very good measurement result. The dark radiation sensor version is used to determine the proportion of radiation or the radiant heat.
Technical Data
| Measuring range: | -30...+80°C |
|---|---|
| Sensors: | see table below |
| Circuit type: | 2- wire connection (3-/4- wire connection optional) |
| Measuring current: | ca. 1mA |
| Sensor cable: | PVC 1.5m (standard) |
| Material: | Aluminum |
| Globe: | Ø = 60mm, black color |
| Insulation resistance: | >/= 100MOhm, at 20°C (500VDC) |
| Protection type: | IP65 (EN 60529) |
| Protection class: | III (EN 60730) |
