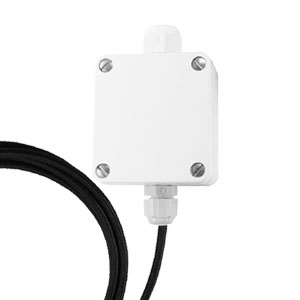

Pendulum temperature transmitter with active output and switchable measuring ranges
Application
Switchable room pendulum temperature transmitter especially for temperature detection in larger rooms, halls or warehouses. The measurement method and the corresponding positioning of the sensor in the room guarantee a very good measurement result.
Technical Data
| Measuring range: | -50...+50°C, -20...+80°C, 0...+50°C, 0...+100°C, 0...+160°C, -50...+160°C selectable with dip switch (other measuring ranges optional) |
|---|---|
| Voltage supply: | 24 VAC ± 10% (for voltage output) |
| Ambient temperature: | -30...+70°C |
| Sensor: | Pt100 |
| Accuracy class: | Class B, DIN EN 60751 |
| Measuring current: | ca. 1mA |
| Circuit type: | 2-/ 3-wire connection |
| Sensor cable: | PVC 1.5m (standard) |
| Protection tube: | Nominal length 100mm, Ø = 15mm |
| Material: | Stainless steel 1.4571 |
| Protection type: | IP65 (EN 60529) |
| Protection class: | III (EN 60730) |
